Jeep Gladiator Control Arms

The All New 2020 Jeep Gladiator is here, and it doesn’t disappoint. A versatile Jeep truck allowing customers top down, doors off fun, while providing the ability to tow and haul is sure excite. With added uses, make sure your JT has quality Made in the USA products!

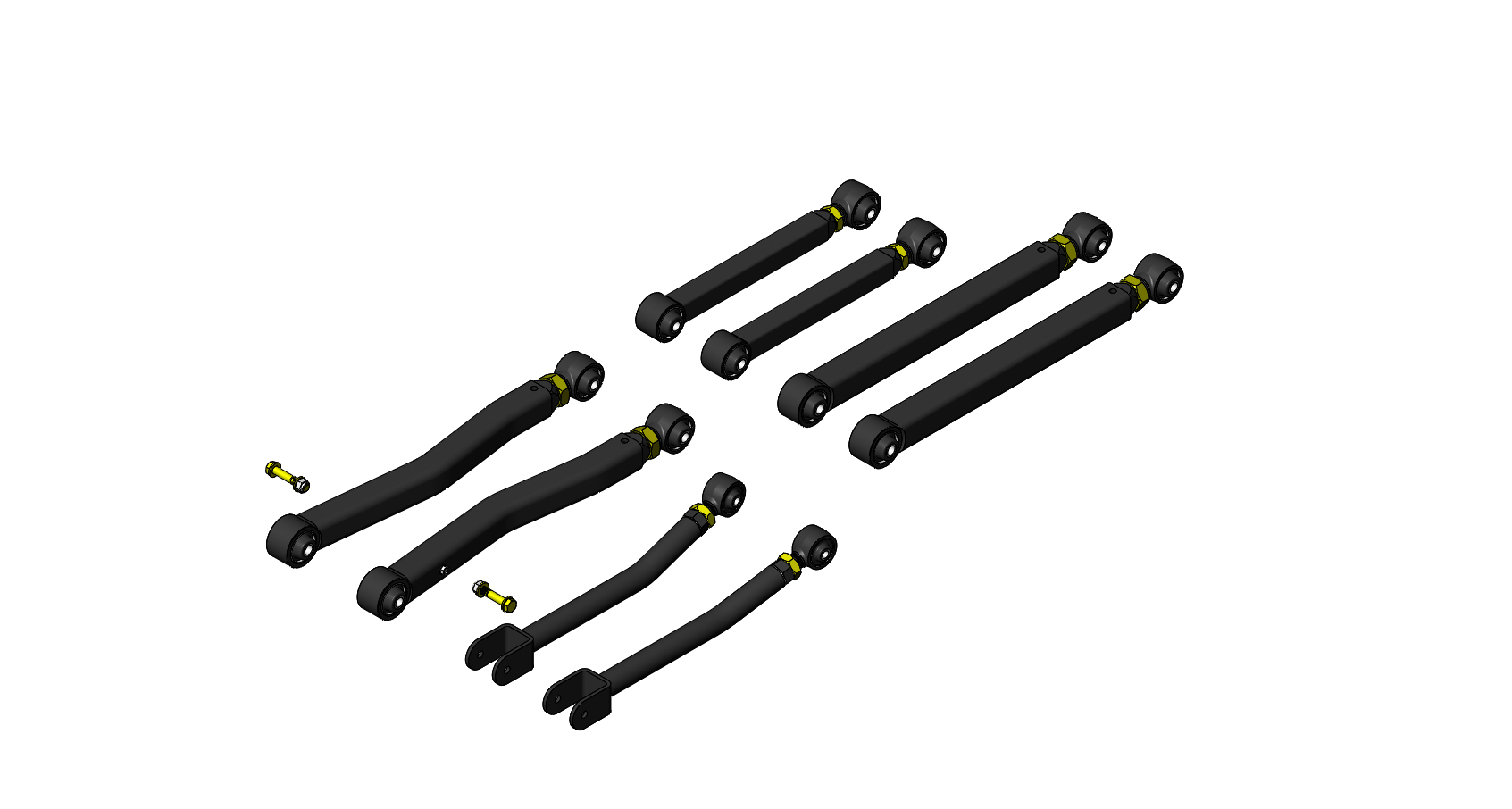

Clayton Off Road offers fully adjustable Overland Plus and Premium control arm kits for your 2020+ Jeep Gladiator JT. Our fully adjustable arms will allow your new JT to handle the payload or trailer duties you expect, and also allow improved suspension articulation.

Our new JT control arm kits are ready, and lift kits are coming soon!

Ready to take your Jeep to the next level, without sacrificing on road comfort, while offering the off road strength and reliability Clayton Off Road is known for


Overland Plus is our new series of control arms. These control arms feature GIIRO joints at both ends and there key features are :


Introducing GIIRO, with it structured anatomy and superior isolator technology, GIIRO has bridged the void between rubber and flex joints for the ultimate touring bushing.

Hundreds of hours of development, combined with thousands of hours of testing have lead to this superior solution for the frustrated off road enthusiast community. Introducing the ultimate off-road touring joint featuring the highly advanced
multi compound GIIRO bushing.

GIIRO is a free pivoting, self-lubricating, self-centering, silent in operation and maintenance free bushing. Its structured anatomy matched with superior material formulation allows two distant worlds to meet as one, providing the desirable comfort for daily driving and easily transitioning to meet the extreme limits on rugged off-road terrain.

With GIIRO, the days of compromise are over!

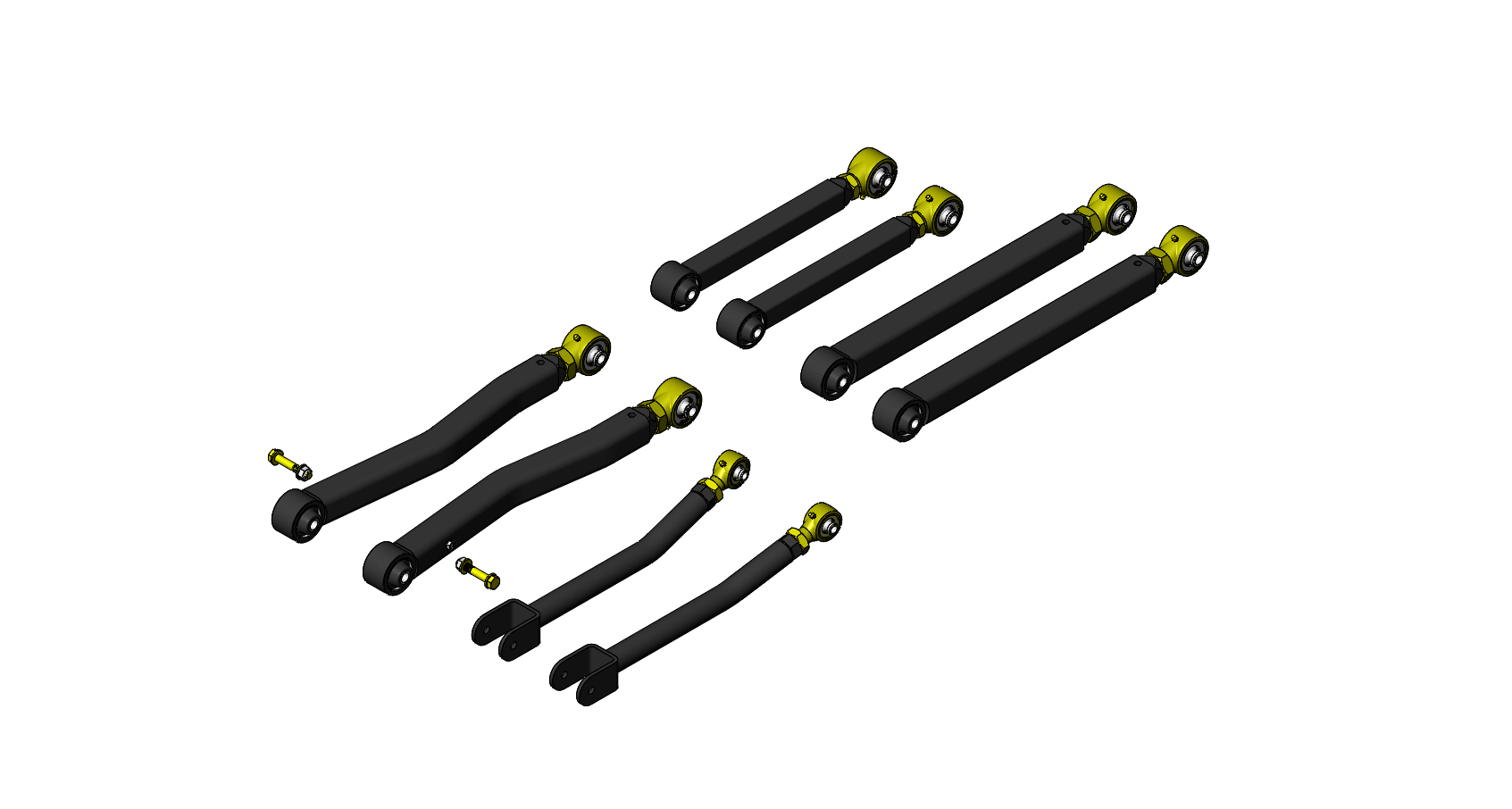

All Clayton control arms will feature the GIIRO joint bushing. Premium and Long arm kits will use them at one end, combined with a forged Johnny Joint. Johnny joints are greaseable, rebuildable, and have the ability to absorb more misalignment so these are ideal in abusive and or long arm applications. GIIRO joints at both ends in our OVERLAND PLUS lift kits are ideal in short and mid-arm applications where the arms are in-line. At ride height the arms are neutral, but when offroad, each joint has up to 26.6 degrees of misalignment.

The outside part of the bushing is softer, to isolate road noise and vibrations and allow the bushing to articulate. It has 13.3 degree of movement in each direction, or 26.6 degrees combined per bushing. Since we use these bushing at both ends, you have over 50 degrees of unrestricted movement. The inside area of the bushing is harder and Teflon infused to act as a bearing surface for the center pin which is free to twist as the suspension moves up and down. Combined with our heavy duty tubing, premium tube insert, welded housing and a forged adjuster, you have the Ultimate control arms available.

And with our LIFETIME warranty, these are the best and last set of control arms you will need.
