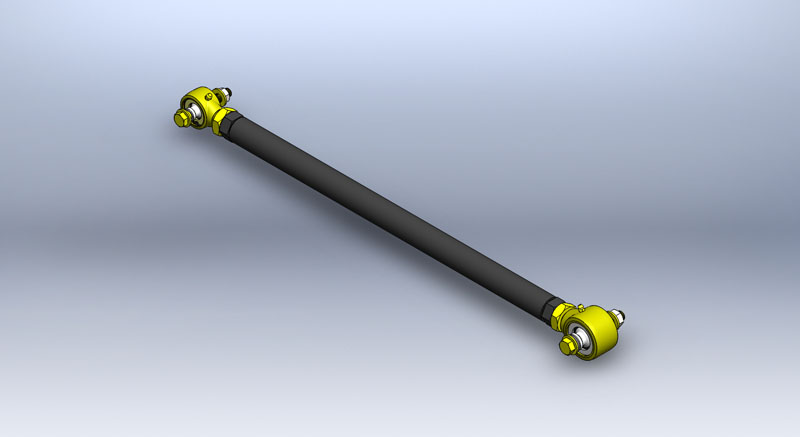

Custom Front Adjustable Track Bar W/Forged JJ 2.0 Width Lower

Our custom builder trackbar is unfinished so you can make the final cut, weld in the tube insert and then fine tune your custom trackbar with the johnny joints. Designed to be used with our new high steer system, using 1/4 brackets at both ends.  Axle end is a forged johnny joint with a 2.0" width and 1/2" thru bolt. Frame side is a 2.5" forged johnny joint with a 2 5/8s width and 9/16s thru bolt. Tubing is 1.5", .156 wall DOM tubing.

Center to center unfinished tube length = 24"

Custom application, cut down to desired finish length and weld in 1 tube insert.

With 24" tube Center to Center Min = 29-13/16", Max = 35-11/16"
